M-Audio Audiophile 24/96

RightMark Audio Analyzer test

Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44.1 kHz & 24-bit, 44.1 kHz

Summary

Test 16-bit, 44.1KHz 24-bit, 44.1KHz
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.07 +0.02, -0.07
Noise level, dB (A): -95.5 -101.6
Dynamic range, dB (A): 95.1 99.9
THD, %: 0.0009 0.0008
IMD, %: 0.0087 0.0050
Stereo crosstalk, dB: -96.2 -100.2

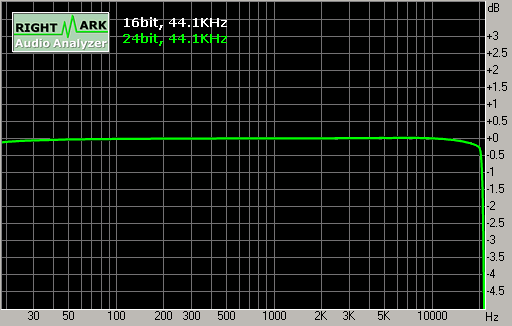

Frequency response

Spectrum graph

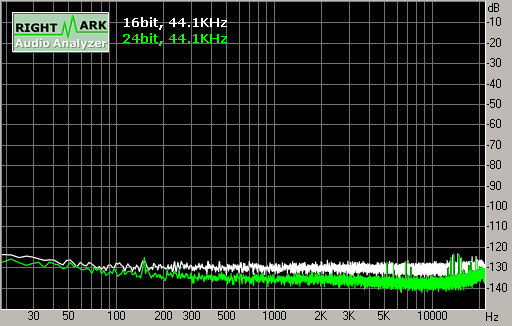

Noise level

Spectrum graph

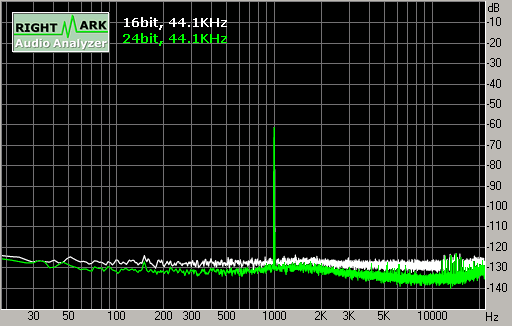

Dynamic range

Spectrum graph

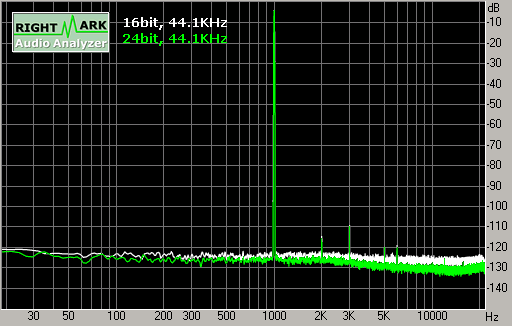

THD + Noise (at -3 dB FS)

Spectrum graph

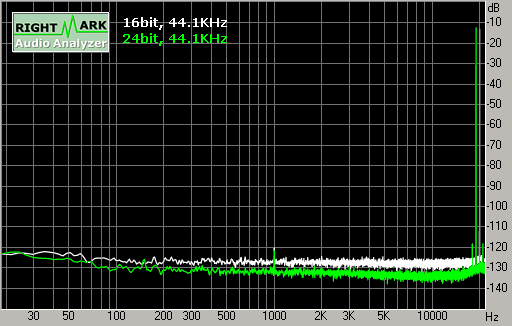

Intermodulation distortion

Spectrum graph

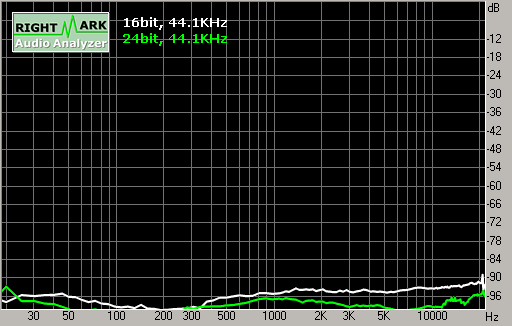

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.0
