TI PCM1710U Audio DA Converter

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz

Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.05, -0.43 Good
Noise level, dB (A): -94.3 Very good
Dynamic range, dB (A): 93.9 Very good
THD, %: 0.0082 Very good
IMD, %: 0.037 Good
Stereo crosstalk, dB: -96.5 Excellent

General performance: Very good

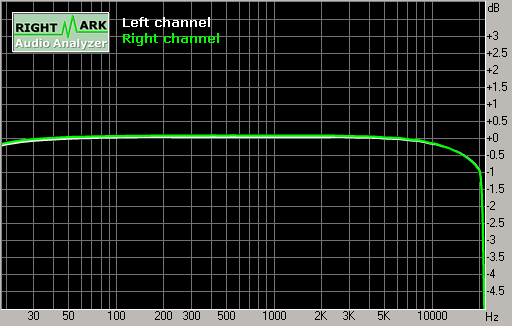

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB -0.95, +0.05
From 40 Hz to 15 kHz, dB -0.43, +0.05

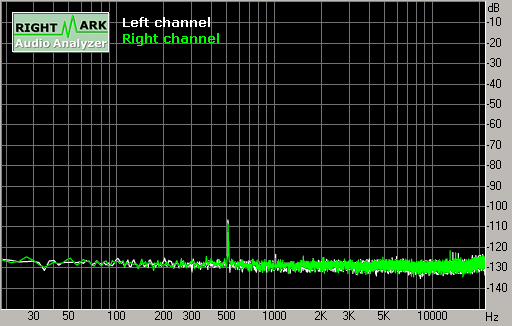

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB: -92.4 -92.4
RMS power (A-weighted), dB: -94.3 -94.1
Peak level, dB FS: -79.5 -79.5
DC offset, %: -0.00 -0.00

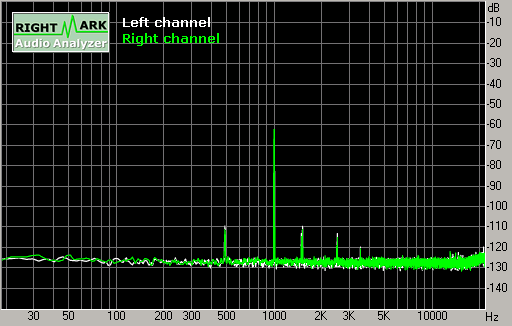

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB: +92.2 +92.2
Dynamic range (A-weighted), dB: +93.9 +93.9
DC offset, %: -0.00 -0.00

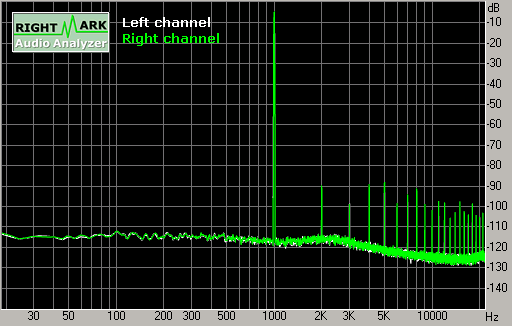

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %: 0.008 0.015
THD + Noise, %: 0.011 0.016
THD + Noise (A-weighted), %: 0.012 0.017

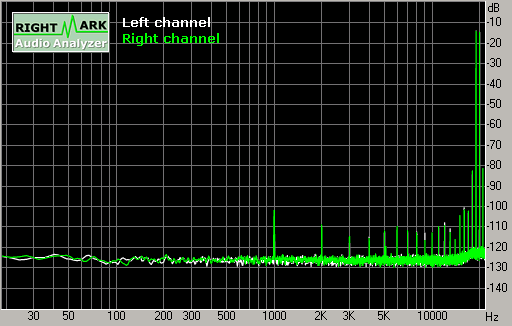

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %: 0.037 0.044
IMD + Noise (A-weighted), %: 0.017 0.019


Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB: -95 -97
Crosstalk at 1 kHz, dB: -95 -95
Crosstalk at 10 kHz, dB: -90 -88

This report was generated by RightMark Audio Analyzer 5.0
