SN-DAC0501 16bit 44.1KHz
AP2496 loopback

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

TestSN-DAC0501 16bit 44.1KHzAP2496 loopback
Frequency response (from 40 Hz to 15 kHz), dB: +0.11, -0.92+0.02, -0.07
Noise level, dB (A): -94.7-95.5
Dynamic range, dB (A): 94.695.1
THD, %: 0.00390.0009
IMD, %: 0.0140.0087
Stereo crosstalk, dB: -94.3-96.2

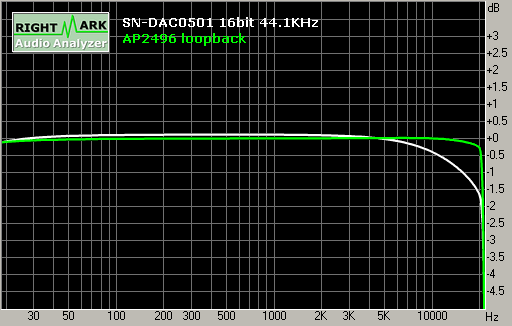

Frequency response

Spectrum graph

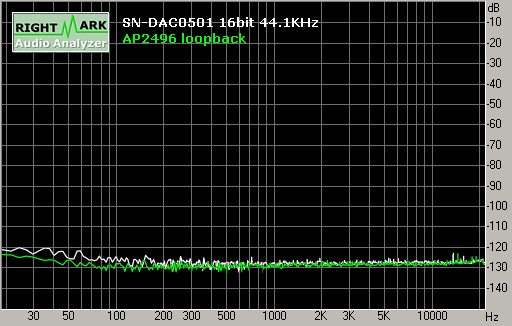

Noise level

Spectrum graph


Dynamic range

Spectrum graph

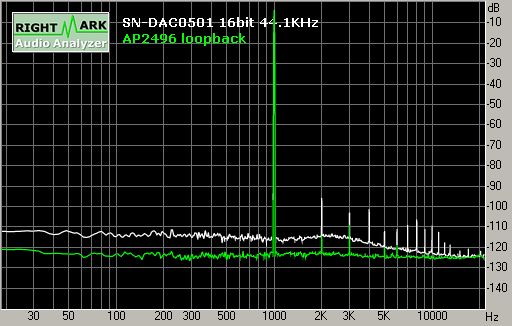

THD + Noise (at -3 dB FS)

Spectrum graph

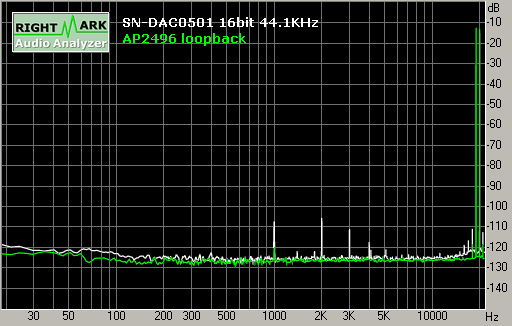

Intermodulation distortion

Spectrum graph

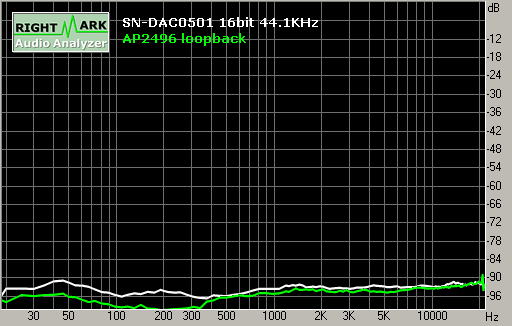

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.0
