TDA1543 (16bit 44.1KHz)

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz

Summary

Test TDA1543 16bit 44.1KHz AP2496 Loopback
Frequency response (from 40 Hz to 15 kHz), dB: +0.07, -0.77 +0.02, -0.07
Noise level, dB (A): -90.7 -95.5
Dynamic range, dB (A): 91.9 95.1
THD, %: 0.017 0.0009
IMD, %: 0.069 0.0087
Stereo crosstalk, dB: -96.9 -96.2

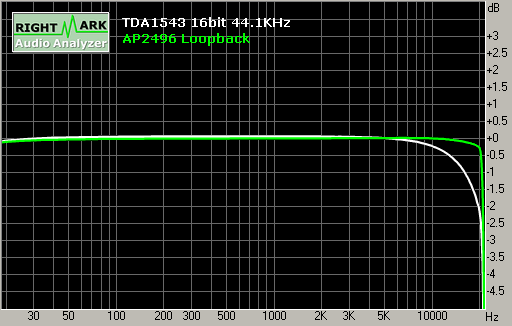

Frequency response

Spectrum graph

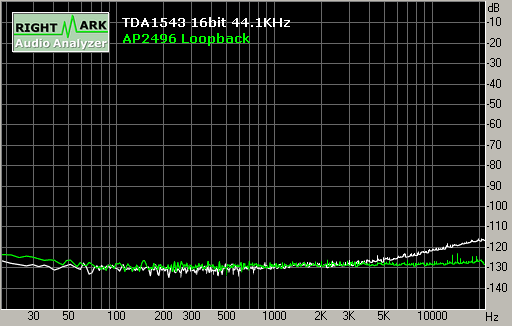

Noise level

Spectrum graph

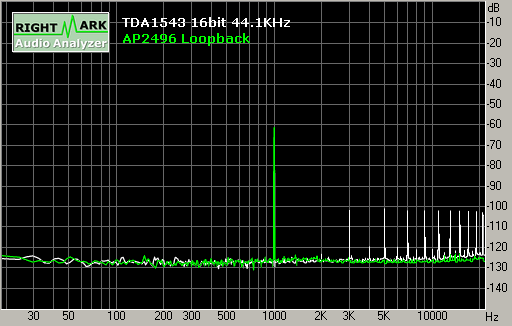

Dynamic range

Spectrum graph

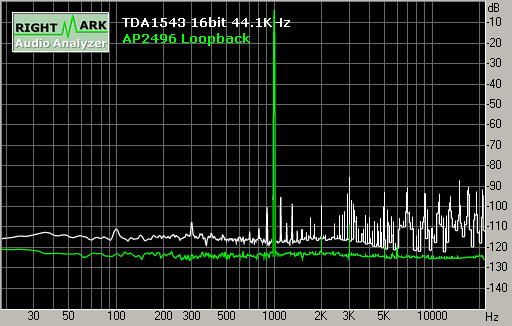

THD + Noise (at -3 dB FS)

Spectrum graph

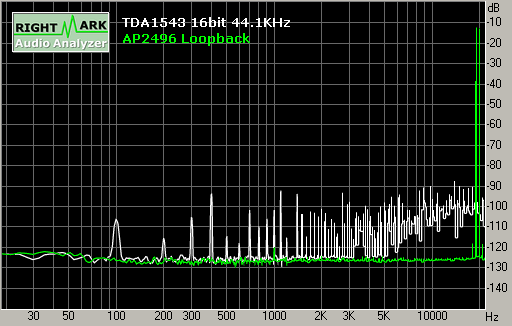

Intermodulation distortion

Spectrum graph

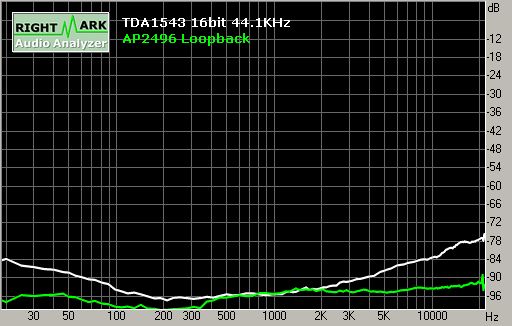

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.4
