SN-DAC0504 16bit 44.1KHz
AP2496 16bit, 44.1KHz
SN-DAC0501 16bit 44.1KHz

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

TestSN-DAC0504 16bit 44.1KHzAP2496 16bit, 44.1KHzSN-DAC0501 16bit 44.1KHz
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.04+0.02, -0.07+0.11, -0.92
Noise level, dB (A): -94.6-95.5-94.7
Dynamic range, dB (A): 94.495.194.6
THD, %: 0.00500.00090.0039
IMD + Noise, %: 0.0150.00870.014
Stereo crosstalk, dB: -93.5-96.2-94.3

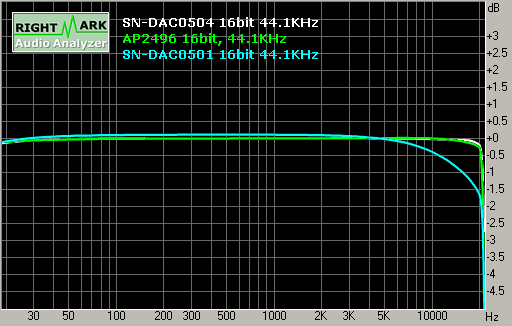

Frequency response

Spectrum graph

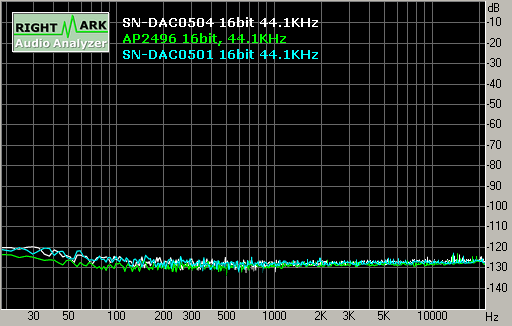

Noise level

Spectrum graph

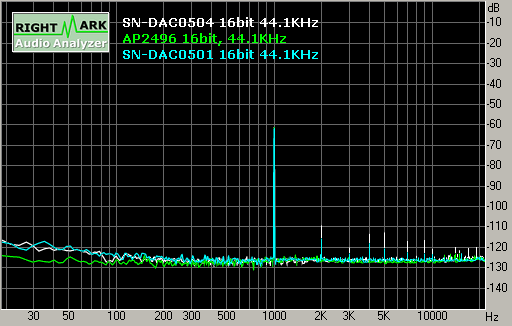

Dynamic range

Spectrum graph

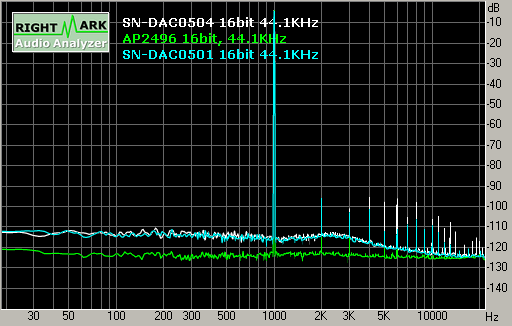

THD + Noise (at -3 dB FS)

Spectrum graph

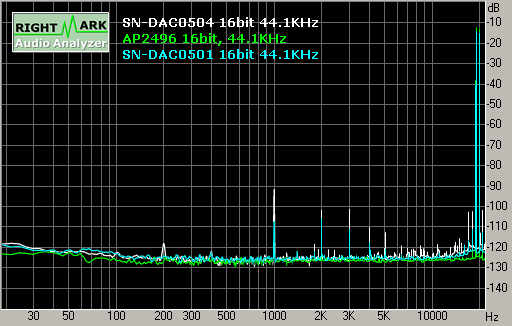

Intermodulation distortion

Spectrum graph

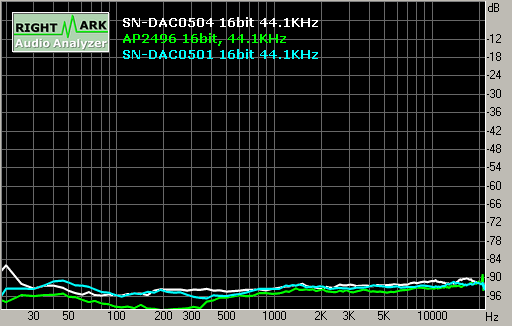

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
