SN-DAC0504 24bit 44.1KHz
AP2496 24bit, 44.1KHz
SN-DAC0501 24bit 44.1KHz

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz




Summary

TestSN-DAC0504 24bit 44.1KHzAP2496 24bit, 44.1KHzSN-DAC0501 24bit 44.1KHz
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.04+0.02, -0.07+0.11, -0.92
Noise level, dB (A): -99.9-101.6-98.4
Dynamic range, dB (A): 98.699.997.8
THD, %: 0.00520.00080.0030
IMD + Noise, %: 0.0140.00500.011
Stereo crosstalk, dB: -98.1-100.2-99.0

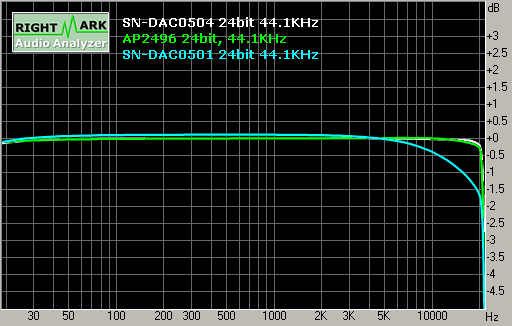

Frequency response

Spectrum graph

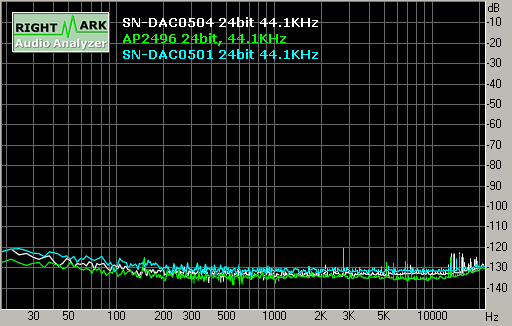

Noise level

Spectrum graph

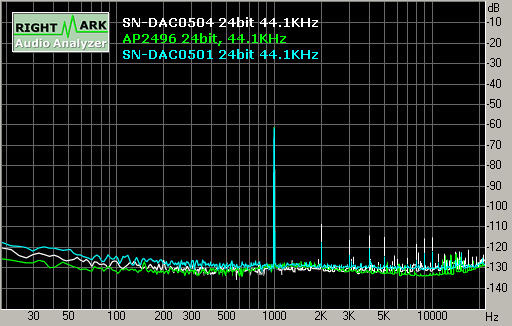

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

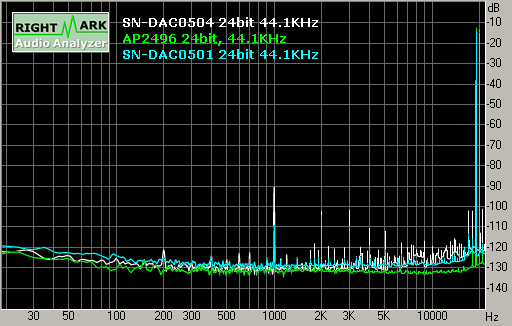

Intermodulation distortion

Spectrum graph

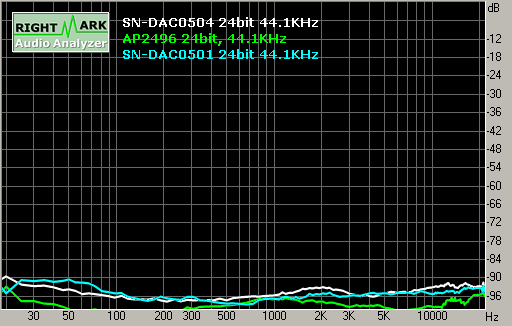

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
