SN-HPA0501 Headphone Amplifier

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz

Summary

Test SN-HPA0501 Loopback
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.09 +0.02, -0.07
Noise level, dB (A): -100.2 -101.6
Dynamic range, dB (A): 98.8 99.9
THD, %: 0.0009 0.0008
IMD, %: 0.0082 0.0050
Stereo crosstalk, dB: -99.7 -100.2

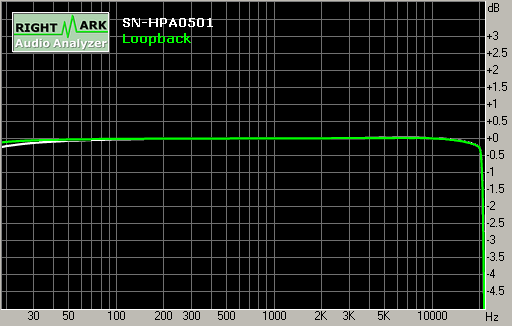

Frequency response

Spectrum graph


Noise level

Spectrum graph

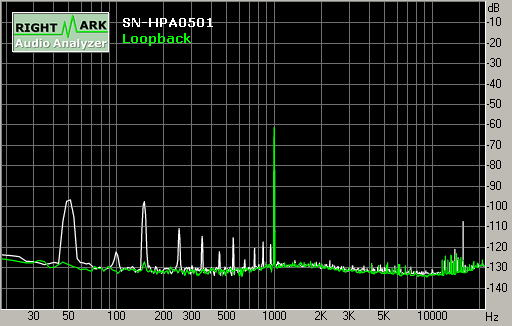

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

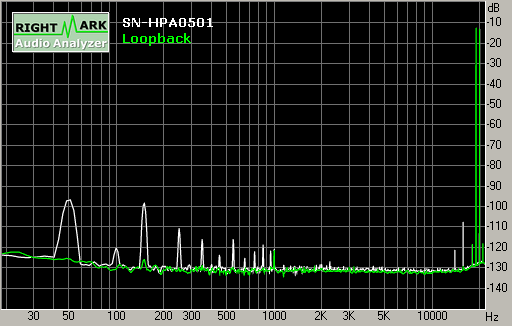

Intermodulation distortion

Spectrum graph

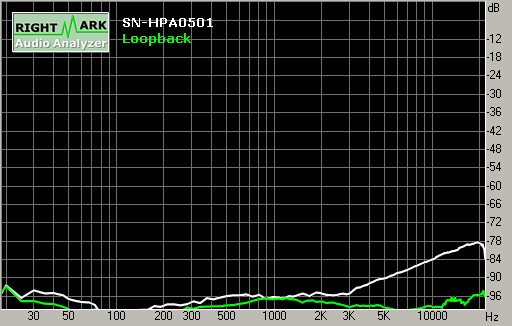

Stereo crosstalk

Spectrum graph

This report was generated by RightMark Audio Analyzer 5.0
