SN-HPA0502
M-Audio Delta AP2496

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz




Summary

TestSN-HPA0502M-Audio Delta AP2496
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.07+0.02, -0.07
Noise level, dB (A): -98.7-101.5
Dynamic range, dB (A): 97.899.8
THD, %: 0.00080.0007
IMD + Noise, %: 0.00640.0051
Stereo crosstalk, dB: -100.3-100.5

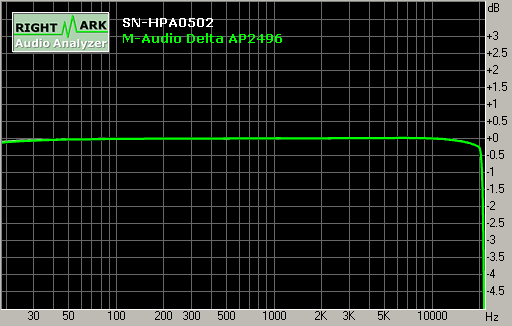

Frequency response

Spectrum graph

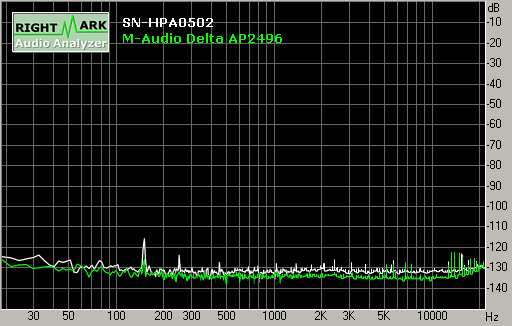

Noise level

Spectrum graph


Dynamic range

Spectrum graph

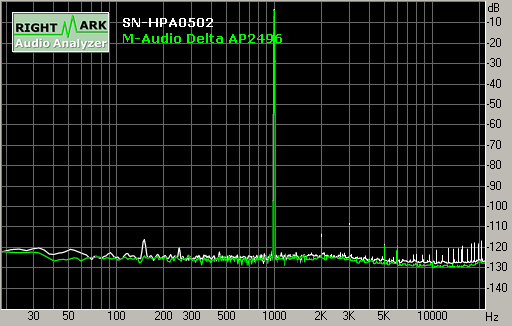

THD + Noise (at -3 dB FS)

Spectrum graph

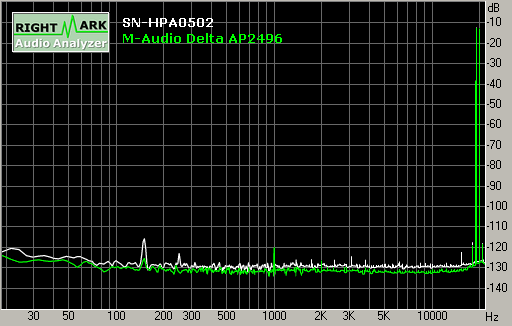

Intermodulation distortion

Spectrum graph

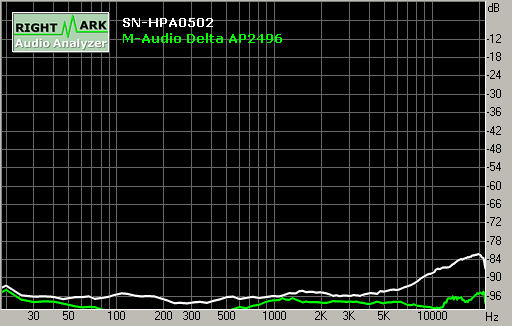

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
